Model :
BW-100Type :
Hydraulic Mud PumpStroke :
60Cylinder Diameter :
55Flow :
100 L/minPressure :
7 MpaShipping Port :
Shanghai Port, ChinaWarranty :

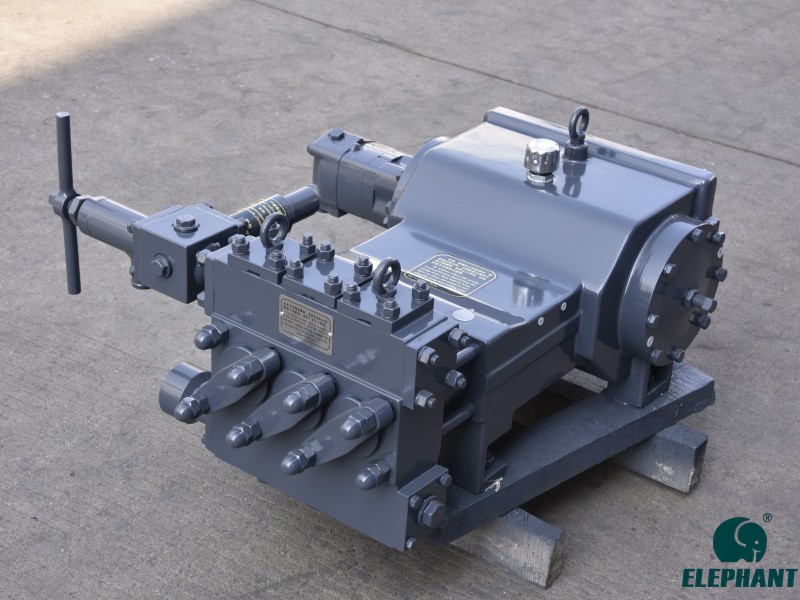

12 MonthsBW-100 hydraulic drive mud pump is a horizontal, triplex, single acting reciprocation piston pump.
It is applied to geological and engineering prospecting such as the railway, the water conservancy, the metallurgy,the build, geology industry and so on, which hole depth is within 1000m.
The flushing liquor used by the pump should not contain the chemical impurity, which may corrode metal and rubber parts, meanwhile, the temperature can not exceed 50℃.
Regarding the mud, the recommended specific gravity is 1.03~1.12; viscosity is 18~25S; sand content is not over 4%; the max sand diameter is no bigger than 2mm, and PH value is 7~8. Meanwhile, the mud can not contain mud pies, weeds, leaves etc.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston / Plunger Mud Pump |
Stroke (mm) | 60 |
Cyclinder Diameter (mm) | 55 |
Flow ( L/min) | 100 |
Pressure (Mpa) | 7 |
Input Speed (r/min) | 240 |
Input Power (KW) | 14 |
Dimensions (mm) | 690*641*350 |
Weight (kg) | 175 |
Hydraulic Motor Model | 2K604-0046 |
Hydraulic Motor Pressure (Mpa) | 17 |
Maximum Motor Flow (L/min) | 65 |
Check this video to get more information regarding our BW-100 piston mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
