Model :
BW-180Type :
Hydraulic Mud PumpStroke :
60Cylinder Diameter :
70Flow :
71-180 L/minPressure :
3.2-8 MpaShipping Port :
Shanghai Port, ChinaWarranty :

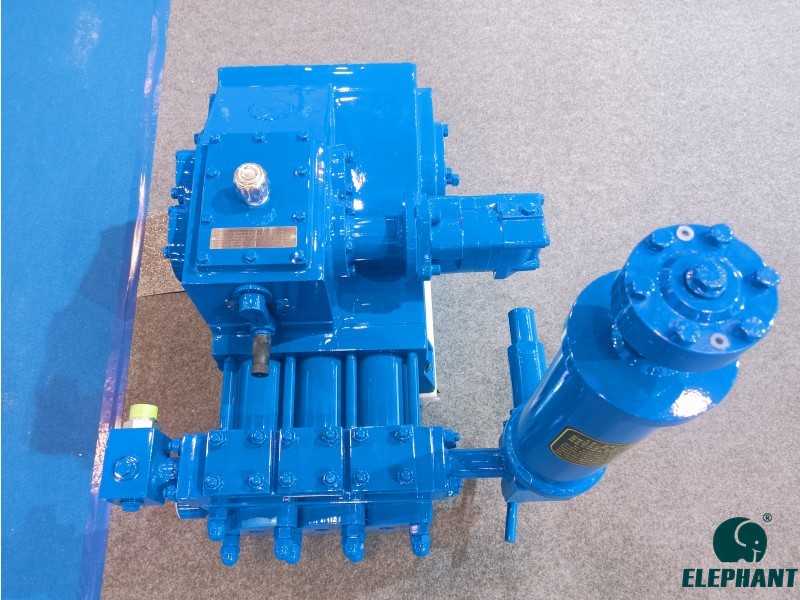

12 MonthsBW-180 drilling mud pump is a horizontal, triplex, single acting reciprocation piston pump, hydraulic motor drive.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 60 |
Cyclinder Diameter (mm) | 70 |
Flow ( L/min) | 180 71 |
Pressure (Mpa) | 3.2 8 |
Input Speed (r/min) | 640 |
Input Power (KW) | 12 |
Dimensions (mm) | 773*628*778 |
Weight (kg) | 252 |
Hydraulic Motor Model | 2K604-0041 |
Hydraulic Motor Pressure (Mpa) | 17 |
Maximum Motor Flow (L/min) | 56 |
Check this video to get more information regarding our BW-180 reciprocation mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

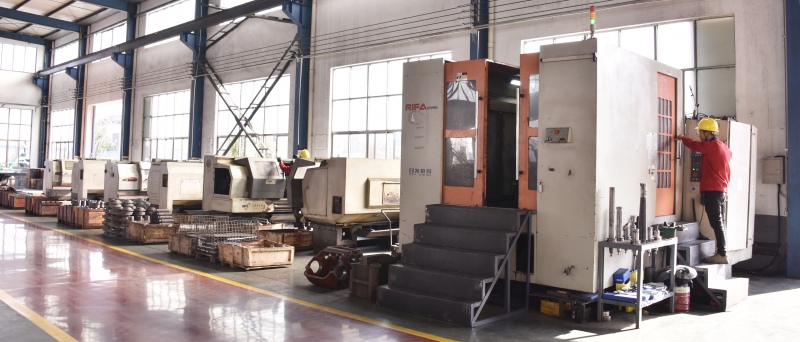

4- Advanced and professional testing and inspection equipment.
