Model :
BW-250Type :
Hydraulic Mud PumpStroke :
70Cylinder Diameter :
75Flow :
69-250 L/minPressure :
2.5-9 MpaShipping Port :
Shanghai Port, ChinaWarranty :
12 MonthsMud pump drilling bw250 is a kind of horizontal, triplex, single acting reciprocation piston pump.
It can be applied to the geological exploration and engineering exploration of railways, water conservancy, metallurgy, construction, geology, foundation plugging, grouting, etc. The hole depth is within 1500m.
For the above mentioned pumping fluid, it can’t contain any chemical impurities which are corrosive to metals and rubbers, meanwhile, the temperature should be no higher than 50℃. If the fluid is drilling mud, then it is recommended to follow below requirement:
1) Specific gravity: between 1.03~1.12,
2) Viscosity: 18~25S
3) Sand content: max. 4% in content, max. diameter 3mm
4) PH Value: 7~8
5) No massive mud clods, grasses, tree leaves inside the fluid
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 70 |
Cyclinder Diameter (mm) | 75 |
Flow ( L/min) | 250 158 100 69 |
Pressure (Mpa) | 2.5 4 6 9 |
Input Speed (r/min) | 727 |
Input Power (KW) | 14 |
Dimensions (mm) | 815*804*861 |
Weight (kg) | 290 |
Hydraulic Motor Model | 2K604-0041 |
Hydraulic Motor Pressure (Mpa) | 17 |
Maximum Motor Flow (L/min) | 64 |
Check this video to get more information regarding our BW-250 mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

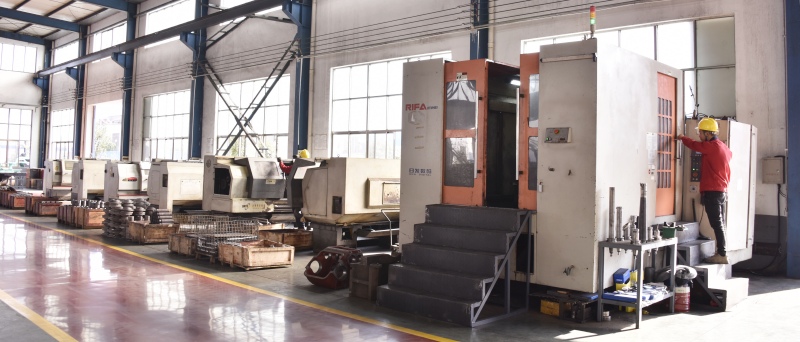

4- Advanced and professional testing and inspection equipment.
