Model :
BW-320Type :
Hydraulic Mud PumpStroke :
110Cylinder Diameter :
80Flow :
118-320 L/minPressure :
4-6 MpaShipping Port :
Shanghai Port, ChinaWarranty :

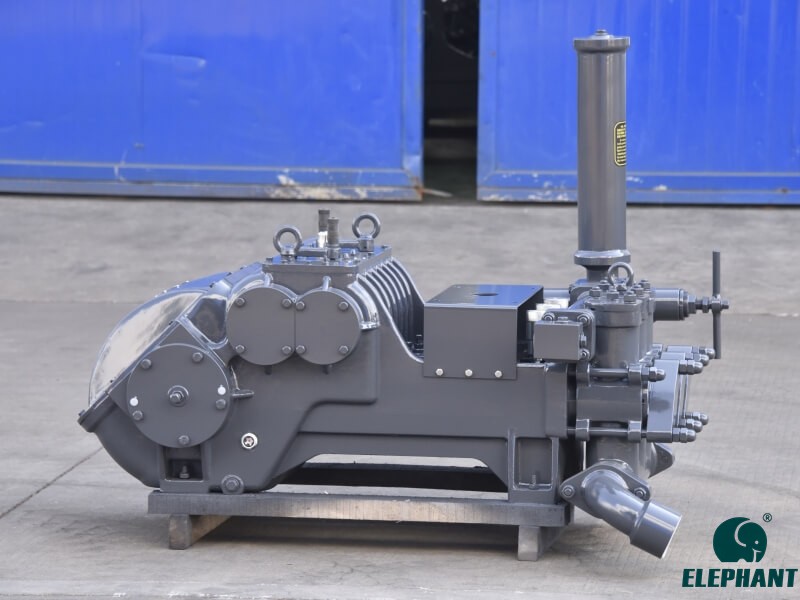

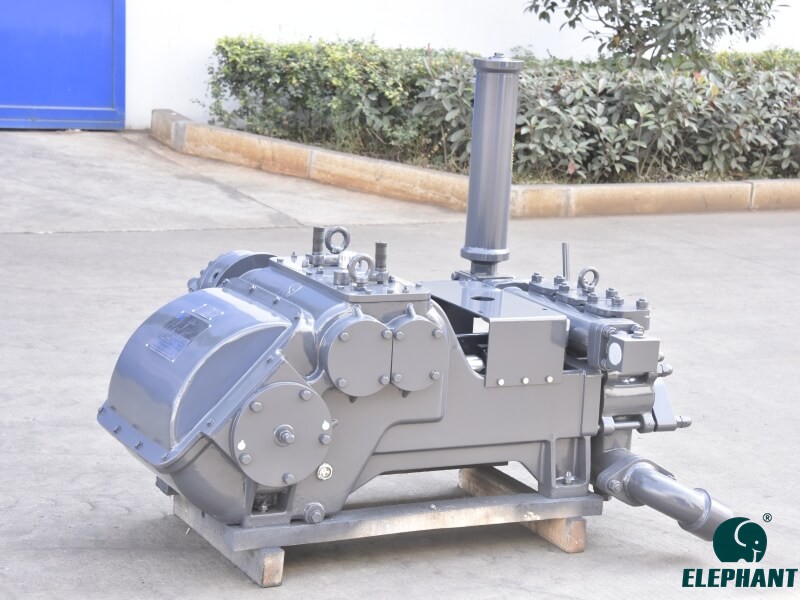

12 MonthsBW-320 national mud pump is a horizontal multifunctional reciprocating single acting triplex pump, which can run under 4 different speeds and flows by reduction gearbox.
It is not only suitable for such new drilling techniques as hydro-hammer drilling within 1000m bore depth, screw drilling within 1500m bore depth, turbodrilling, ordinary inner core drilling method within 2500m bore depth, and also other application areas, such as soft subgrade’s grouting treatment, construction drilling, horizontal drilling, high mountain water transportation, mineral bore dewatering, embankment grounting, etc.
Its main function is to circulate the washing fluid inside the drill bores and rush out the rock debris to the ground, to keep the bore bottom clean, to protect the bore wall from collapse and to cool down and lubricate the drilling bits or drilling tools.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
Stroke (mm) | 110 |
Cyclinder Diameter (mm) | 80 |
Flow ( L/min) | 320 230 165 118 |
Pressure (Mpa) | 4 5 6 8 |
Input Speed (r/min) | 535 |
Input Power (KW) | 30 |
Dimensions (mm) | 1265*941*1026 |
Weight (kg) | 640 |
Hydraulic Motor Model | 1-175 |
Hydraulic Motor Pressure (Mpa) | 20 |
Maximum Motor Flow (L/min) | 102 |
Check this video to get more information regarding our BW-320 plunger mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
