Model :
BW-450Type :
Hydraulic Mud PumpStroke :
110Cylinder Diameter :
95Flow :
165-450 L/minPressure :
3.5-8 MpaShipping Port :
Shanghai Port, ChinaWarranty :

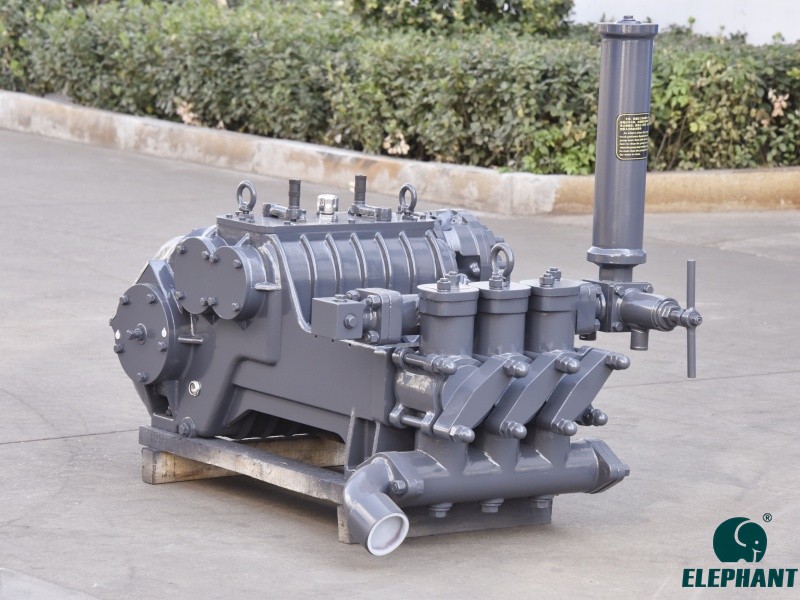

12 MonthsBW-450 slush mud pump is a multi-purpose horizontal three-cylinder reciprocating single-acting piston pump with four-speed gear transmission and four-speed flow.
It can not only adapt to the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling within a hole depth of 1000m, the matching of screw drilling and turbo drilling within a hole depth of 1500m, and the matching of ordinary core drilling within a hole depth of 2500m.
The flushing liquor used by the pump should not contain the chemical impurity, which may corrode metal and rubber parts, meanwhile, the temperature can not exceed 50℃.
Regarding the mud, the recommended specific gravity is 1.03~1.12; viscosity is 18~25S; sand content is not over 4%; the max sand diameter is no bigger than 2mm, and PH value is 7~8. Meanwhile, the mud can not contain mud pies, weeds, leaves etc.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 110 |
Cyclinder Diameter (mm) | 95 |
Flow ( L/min) | 450 320 230 165 |
Pressure (Mpa) | 3.5 4.5 6 8 |
Input Speed (r/min) | 508 |
Input Power (KW) | 36 |
Dimensions (mm) | 1265*941*1026 |
Weight (kg) | 640 |
Hydraulic Motor Model | 1-200 |
Hydraulic Motor Pressure (Mpa) | 20 |
Maximum Motor Flow (L/min) | 112 |
Check this video to get more information regarding our BW- 450 drilling mud pump.
Advantages:

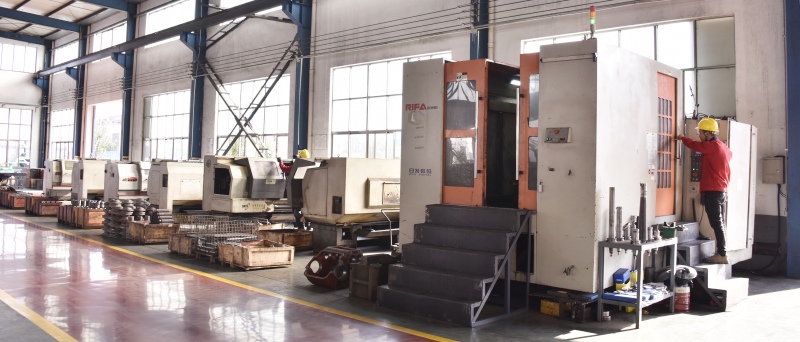

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
