Model :
BW-75QType :
Hydraulic Mud PumpStroke :
40Cylinder Diameter :
50Flow :
75 L/minPressure :
6 MpaShipping Port :
Shanghai Port, ChinaWarranty :

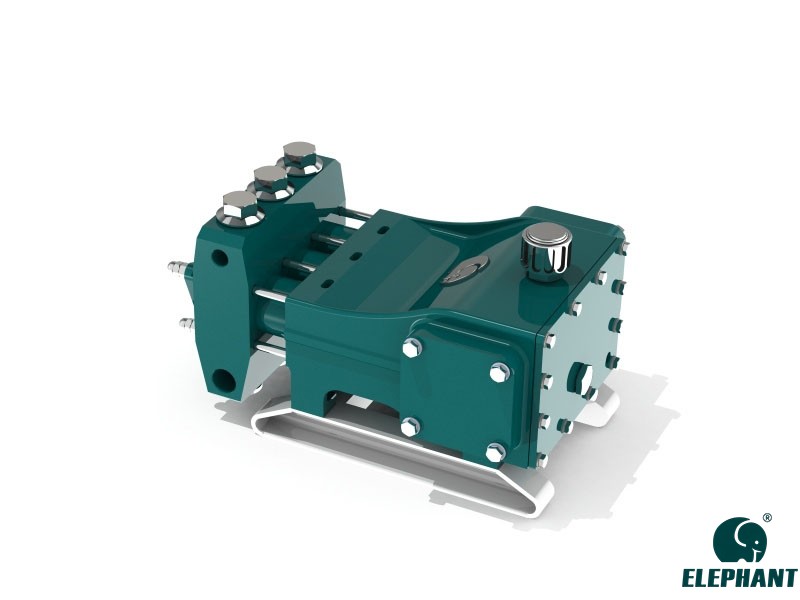

12 MonthsThe BW Series pump is a single acting triplex reciprocating pump (plunger pump or piston pump) driven by a hydraulic motor. This series of pumps has stepless speed regulation and can achieve a variety of flows and pressures matching. The BW series pump adopts new concepts in design.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston / Plunger Mud Pump |
Stroke (mm) | 40 |
Cyclinder Diameter (mm) | 50 |
Flow ( L/min) | 75 |
Pressure (Mpa) | 6 |
Input Speed (r/min) | 320 |
Input Power (KW) | 9 |
Dimensions (mm) | 461*517*254 |
Weight (kg) | 72 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
