Model :
CBW-1000Type :
Diesel Engine Mud PumpStroke :
140Cylinder Diameter :
115Flow :
335-1000 L/minPressure :
4-10 MpaShipping Port :
Shanghai Port, ChinaWarranty :

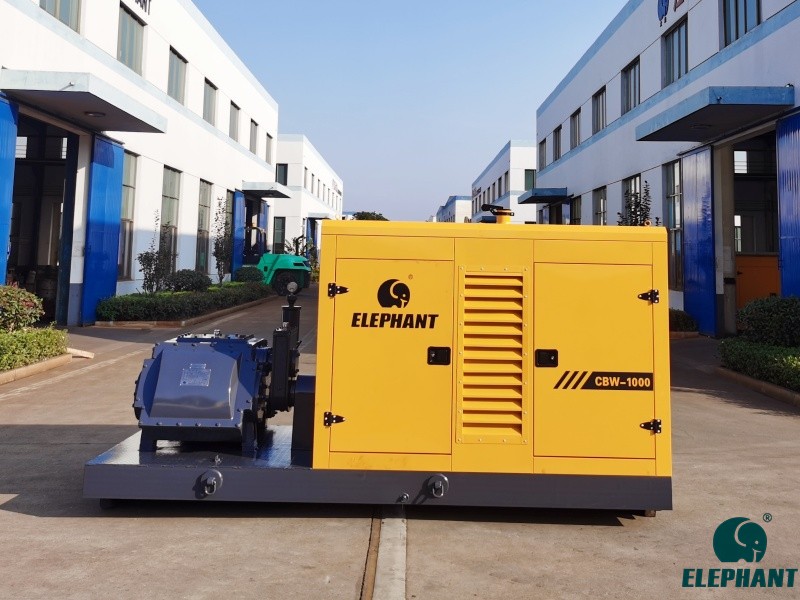

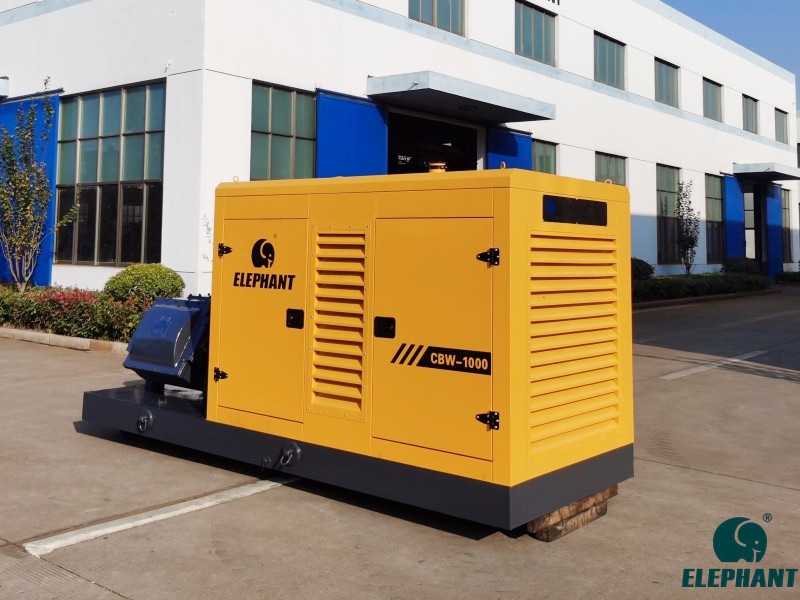

12 MonthsCBW-1000 mud pump with diesel engine unit is a horizontal triplex reciprocating single-acting piston pump with four-speed gear transmission and four-speed flow.
It can not only meet the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling, internal screw drilling, turbine drilling, common core drilling with a hole depth of 2000m. It can also be used for grouting treatment of various soft foundations, well drilling, mountain water delivery, mine drainage, embankment grouting and other purposes.
Its main function in the drilling process is to supply flushing fluid to the borehole and circulate it in the borehole to carry cuttings back to the ground, keep the bottom of the hole clean, protect the wall of the hole from collapsing, cool and lubricate the drilling tools.
Features:
1. With Cummins diesel engine;
2. Compact structure, small volume, durable service;
3. Easy operation, reliable performance;
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 140 |
Cyclinder Diameter (mm) | 115 |
Flow (L/min) | 1000 650 515 335 |
Pressure (Mpa) | 4 6 7.5 10 |
Input Speed (r/min) | 80 |
Dimensions (mm) | 3515*1704*1925 |
Weight (kg) | 3140 |
Diesel Model | QSB5.9-P130 |
Diesel Engine Power (KW) | 96 |
Rated Speed (r/min) | 1500 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - Top-class heavy equipment company we cooperating:XCMG, GOODENG, SANY, DRILLTO, STETON etc.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

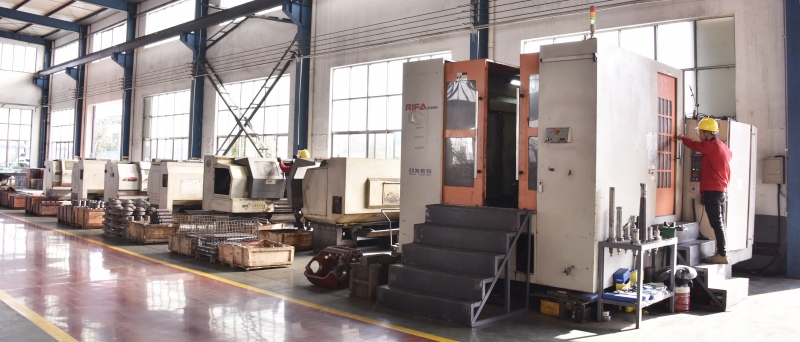

4- Advanced and professional testing and inspection equipment.
