Model :
CBW-2500Type :
Diesel Engine Mud PumpStroke :
200Cylinder Diameter :
140Flow :
539-2500 L/minPressure :
4.6-19 MpaShipping Port :
Shanghai Port, ChinaWarranty :
12 MonthsCBW-2500 drilling diesel engine mud pump is a kind of horizontal triplex reciprocating single-acting plunger pump, equipment with automatic shift gearbox, wireless remote control.
It can be used for the purposes, such as grouting, mine drainage and long-distance water delivery. This plunger mud pump has six kinds of flow and pressure.
This kind of customized mud pump is equipped with wireless remote control system, touch screen remote operation, display screen real-time monitoring.
Features:
1. With Cummins diesel engine;
2. Wireless remote control, improving efficiency;
3. Easy operation, reliable performance;
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
Stroke (mm) | 200 |
Cyclinder Diameter (mm) | 140 |
Flow (L/min) | 2500 1845 1330 990 730 539 |
Pressure (Mpa) | 4.6 6 8 11 15 19 |
Input Speed (r/min) | 230 |
Dimensions (mm) | 5310*2300*2480 |
Weight (kg) | 12900 |
Diesel Model | QSZ13-C400 |
Diesel Engine Power (KW) | 298 |
Rated Speed (r/min) | 1800 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - Top-class heavy equipment company we cooperating:XCMG, GOODENG, SANY, DRILLTO, STETON etc.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

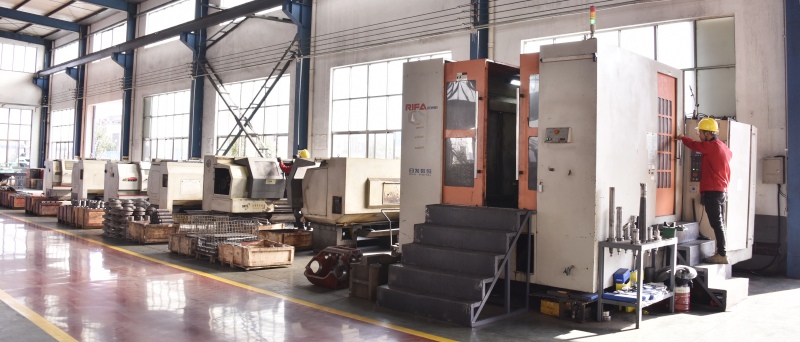

4- Advanced and professional testing and inspection equipment.
