Model :
CBW-450Type :
Diesel Engine Mud PumpStroke :
110Cylinder Diameter :
95Flow :
160-450 L/minPressure :
2-5 MpaShipping Port :
Shanghai Port, ChinaWarranty :

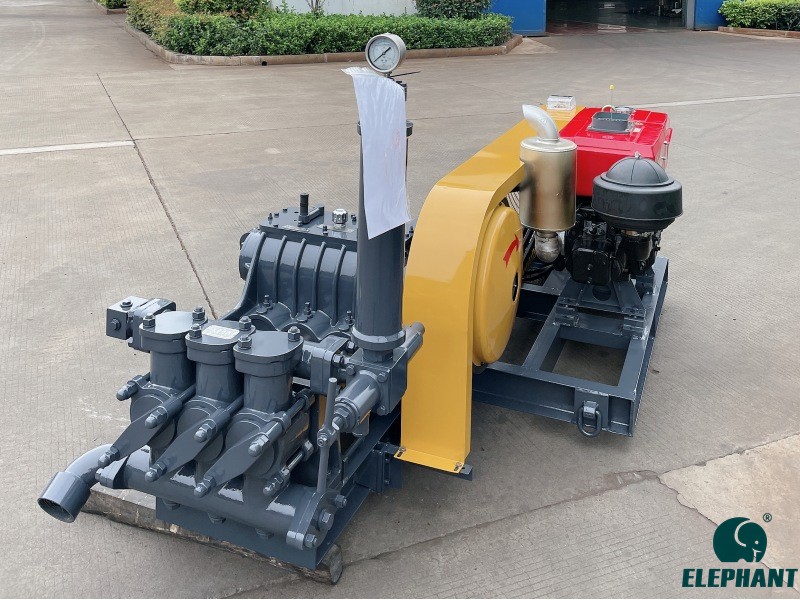

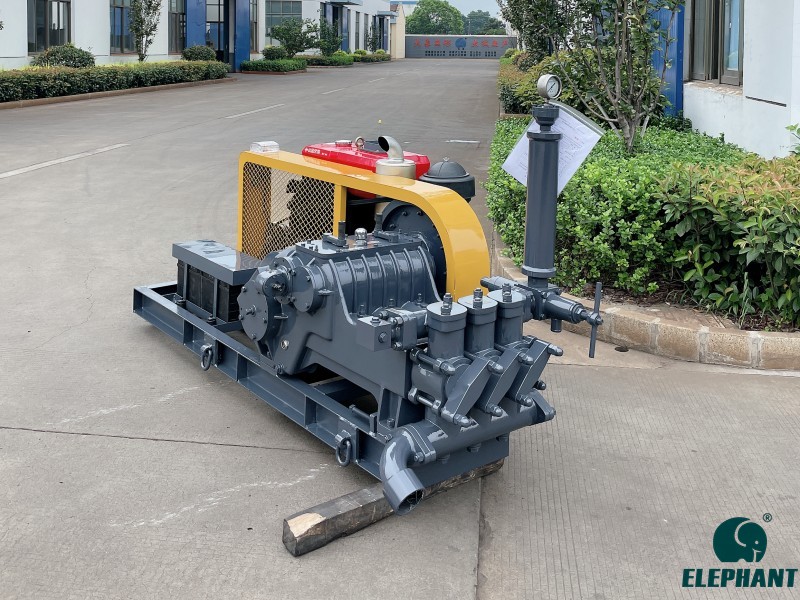

12 MonthsCBW-450 small drilling mud pump is a multi-purpose horizontal three-cylinder reciprocating single-acting piston pump with four-speed gear transmission and four-speed flow.
It can not only adapt to the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling within a hole depth of 1000m, the matching of screw drilling and turbo drilling within a hole depth of 1500m, and the matching of ordinary core drilling within a hole depth of 2500m.
Features:
1. With diesel engine;
2. Compact structure, small volume, durable service;
3. Easy operation, reliable performance;
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 110 |
Cyclinder Diameter (mm) | 95 |
Pump Speed (r/min) | 196 140 100 71 |
Flow (L/min) | 450 320 230 160 |
Pressure (Mpa) | 2 3 4 5 |
Maximum Input Torque (Nm) | 420 |
Input Speed (r/min) | 490 |
Rated Power (KW) | 18 |
Maximum Water Absorption Height(m) | 2.5 |
Inlet Connector | RC 3 |
Outlet Connector | M42 x 2 |
Dimensions (mm) | 2320*1360*1300 |
Weight (kg) | 1100 |
Driving Type | Single Cylinder Diesel Engine Pulley Rotation |
Diesel Model | L32M |
Diesel Engine Power (KW) | 23 |
Diesel Engine Speed (r/min) | 2000 |
Starting Voltage (V) | 24 |
Check this video to get more information regarding our CBW- 450 drilling mud pump.
Advantages:

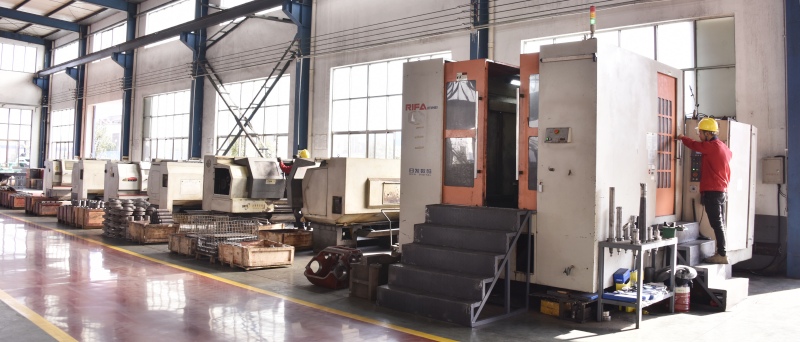

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
