Model :
CBW-600Type :
Diesel Engine Mud PumpStroke :
110Cylinder Diameter :
100Flow :
195-600 L/minPressure :
3.5-10 MpaShipping Port :
Shanghai Port, ChinaWarranty :

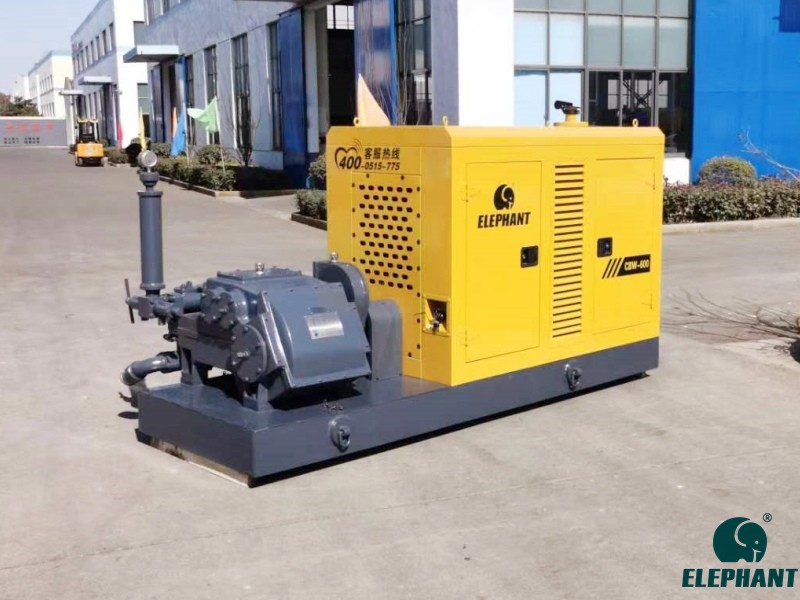

12 MonthsCBW-600 mud pump for drilling wells is a multi-purpose three-cylinder reciprocating single-acting pump with four-speed gear transmission and four-speed flow.
It can not only adapt to the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling within a hole depth of 1000m, the matching of screw drilling and turbo drilling within a hole depth of 1500m, and the matching of ordinary core drilling within a hole depth of 2500m.
Features:
1. With Cummins diesel engine;
2. Compact structure, small volume, durable service;
3. Easy operation, reliable performance;
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 110 |
Cyclinder Diameter (mm) | 100 |
Flow (L/min) | 600 415 280 195 |
Pressure (Mpa) | 3.5 5 7.5 10 |
Input Speed (r/min) | 550 |
Dimensions (mm) | 2410*1785*1670 |
Weight (kg) | 2100 |
Diesel Model | R4105ZP |
Diesel Engine Power (KW) | 60 |
Rated Speed (r/min) | 1450 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - Top-class heavy equipment company we cooperating:XCMG, GOODENG, SANY, DRILLTO, STETON etc.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

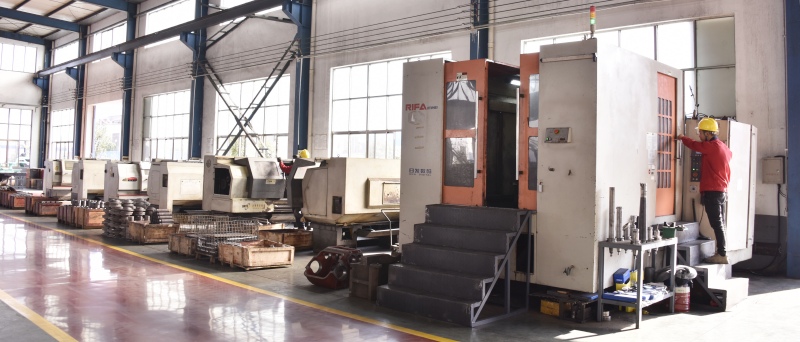

4- Advanced and professional testing and inspection equipment.
