Model :
CBWH-1200Type :
Diesel Engine Mud PumpStroke :
150Cylinder Diameter :
125Flow :
385-1200 L/minPressure :
4-10 MpaShipping Port :
Shanghai Port, ChinaWarranty :

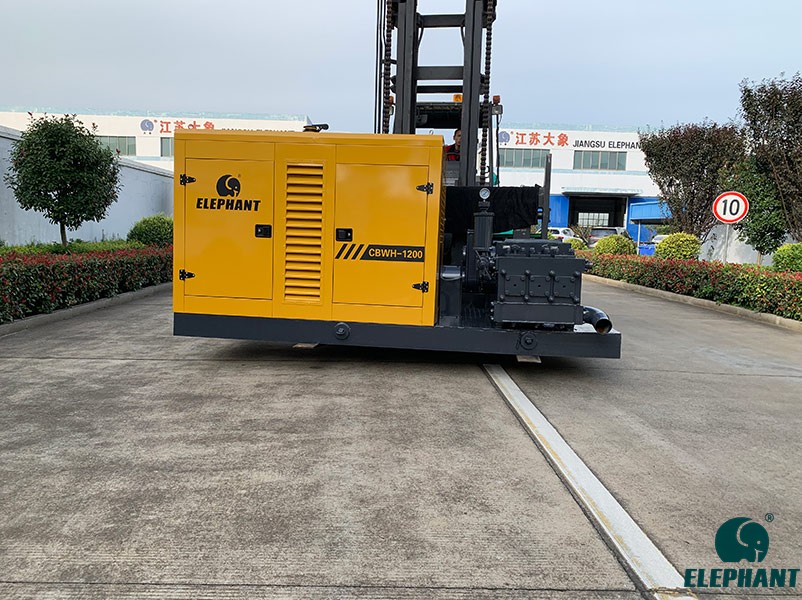

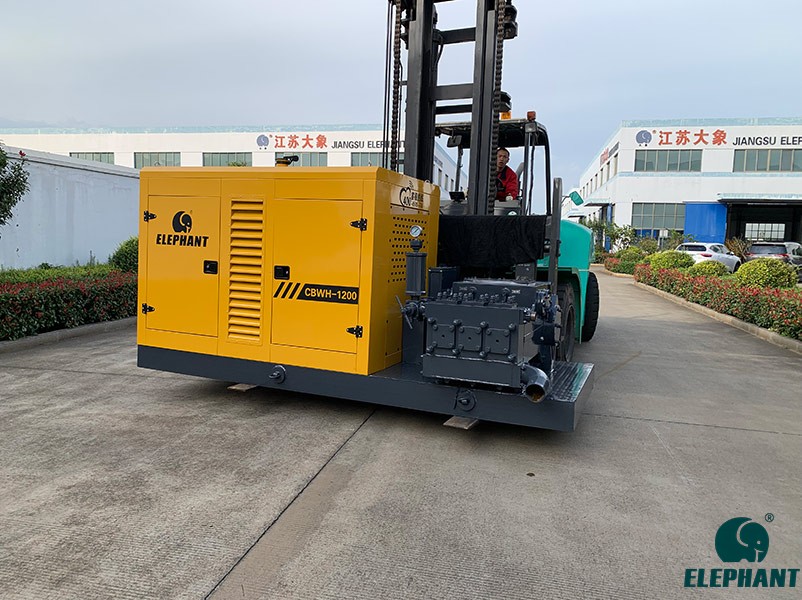

12 MonthsCBWH-1200 reciprocating pump is a horizontal three-cylinder reciprocating single-acting piston pump, driven by diesel engine.
It is mainly used for matching with non-excavation drilling rigs of about 150 tons, and can also be used for other purposes such as grouting, mine sewage and long-distance water delivery.
It has four flow rates and four pressures, with a wide range of flow rate and pressure variations, which can be applied to drilling and back hauling in different hole sizes.
Features:
1.With Cummins diesel engine;
2.Wireless remote control, improving efficiency;
3.Easy operation, reliable performance;
4.Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 150 |
Cyclinder Diameter (mm) | 125 |
Flow (L/min) | 1200 779 600 385 |
Pressure (Mpa) | 4 6 8 10 |
Input Speed (r/min) | 96 |
Dimensions (mm) | 3715*1785*1925 |
Weight (kg) | 3700 |
Diesel Model | QSB5.9-P160 |
Diesel Engine Power (KW) | 120 |
Rated Speed (r/min) | 1500 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - Top-class heavy equipment company we cooperating:XCMG, GOODENG, SANY, DRILLTO, STETON etc.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
