Model :
CBWH-3000Type :
Diesel Engine Mud PumpStroke :
175Cylinder Diameter :
200Flow :
818-3000 L/minPressure :
5-10 MpaShipping Port :
Shanghai Port, ChinaWarranty :

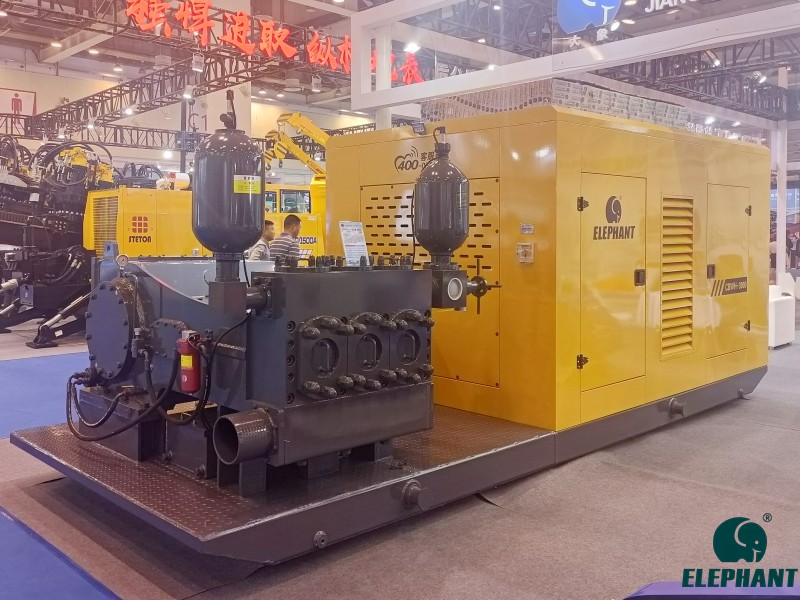

12 MonthsCBWH-3000 Mud diesel engine pump is a kind of horizontal triplex reciprocating single-acting piston pump, driven by diesel engine, equipment with automatic shift gearbox, wireless remote control.
It can be used for the purposes, such as grouting, mine drainage and long-distance water delivery. This piston mud pump has five kinds of flow and pressure.
This kind of mud pump is equipped with wireless remote control system, touch screen remote operation, display screen real-time monitoring.
Features:
1. With Cummins diesel engine;
2. Wireless remote control, improving efficiency;
3. Easy operation, reliable performance;
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 175 |
Cyclinder Diameter (mm) | 200 |
Flow (L/min) | 3000 2452 1818 1340 818 |
Pressure (Mpa) | 5 6 8 10 10 |
Input Speed (r/min) | 320 |
Dimensions (mm) | 5980*2390*2450 |
Weight (kg) | 11000 |
Diesel Model | QSZ13-C550 |
Diesel Engine Power (KW) | 410 |
Rated Speed (r/min) | 1500 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - Top-class heavy equipment company we cooperating:XCMG, GOODENG, SANY, DRILLTO, STETON etc.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
