Model :
DBW-800Type :
Electric Motor Mud PumpStroke :
135Cylinder Diameter :
110Flow :
260-800 L/minPressure :
3.5-10 MpaShipping Port :
Shanghai Port, ChinaWarranty :

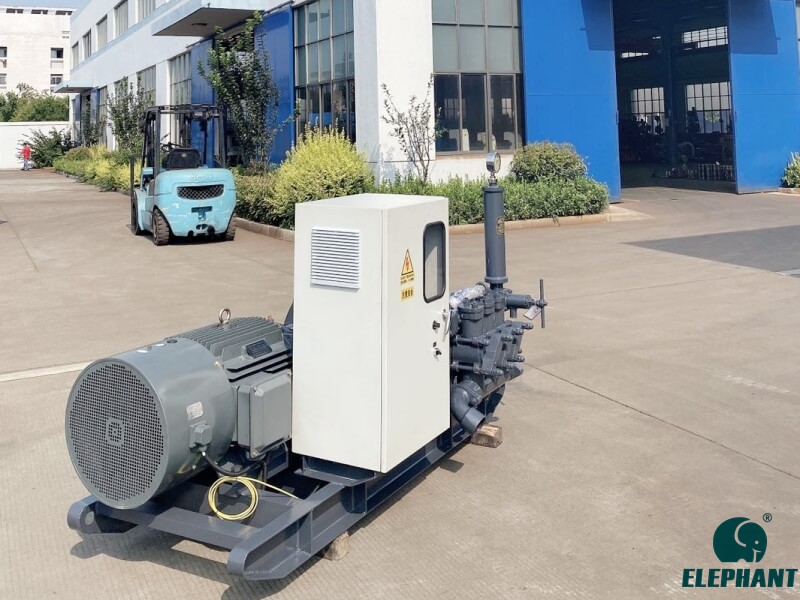

12 MonthsDBW-800 Mud pump for core drilling is a kind of horizontal triplex reciprocating single acting piston pump, using varible frequency electric motor driven, transmission by coupling reducer. It is mainly used for conveying flushing fluid to borehole in geological core drilling. It can also be used for other purposes, such as grouting, drainage and long-distance water delivery. The pump has four kinds of flow and four kinds of pressure, all gears can be stepless regulated by frequency converter.
The pump adopts advanced structure and new material around the world, so it has advantages, such as reliable capability, long service life of the wearing parts, small volume, light weight, good decomposability and convenient movement etc.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 135 |
Cyclinder Diameter (mm) | 110 |
Flow ( L/min) | 800 550 370 260 |
Pressure (Mpa) | 3.5 5 7.5 10 |
Input Speed (r/min) | 500 |
Input Power (KW) | 55 |
Dimensions (mm) | 2065*1360*1340 |
Weight (kg) | 1880 |
Motor Model | YVF2 250M-4 |
Motor Power (KW) | 55 |
Advantages:

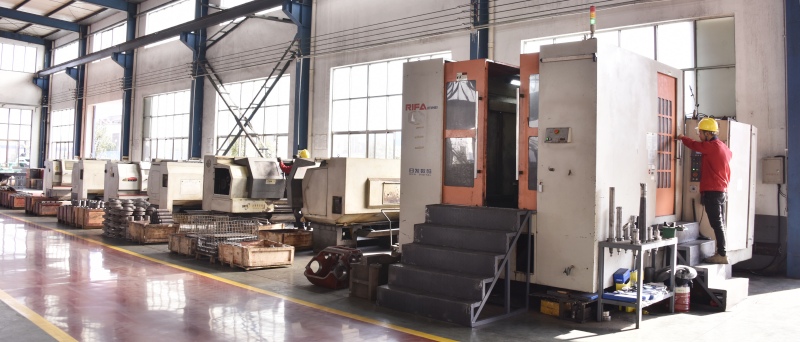

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
