Model :
DXBH-600Type :
Hydraulic Mud PumpStroke :
110Cylinder Diameter :
100Flow :
600-300 L/minPressure :
4-8 MpaShipping Port :
Shanghai Port, ChinaWarranty :

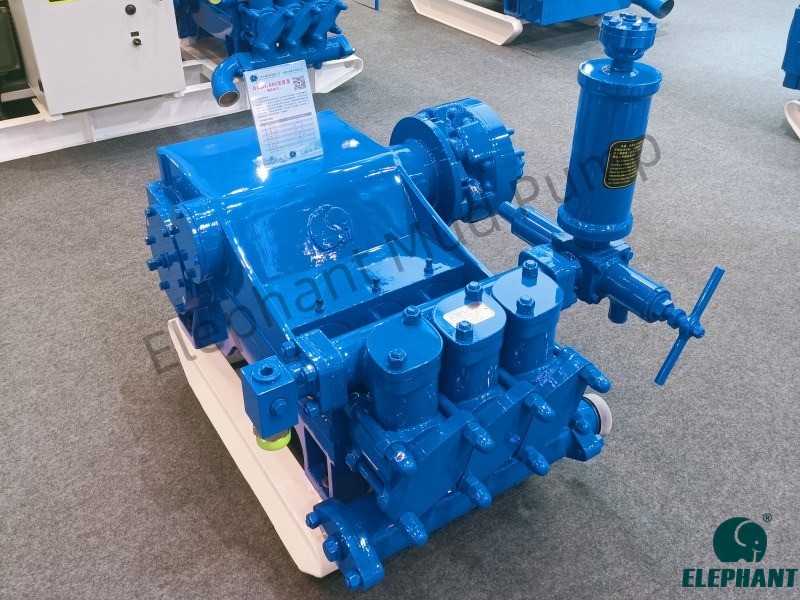

12 MonthsDXB-600 Hydraulic mud pump is a kind of multi-purpose horizontal triplex reciprocating single-acting piston pump, adopting double displacement hydraulic motor to drive.
It mainly works with the trenchless drilling rig about 50T. It can also be used for other purposes, such as grouting, mine drainage and long-distance water delivery.
This kind of mud pump has two flows and pressures, by remotely adjusting hydraulic motor flow.
Technical Parameters and Specifications:
Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
Stroke (mm) | 110 |
Cyclinder Diameter (mm) | 100 |
Flow ( L/min) | 600 300 |
Pressure (Mpa) | 4 8 |
Input Speed (r/min) | 928 464 |
Input Power (KW) | 48 |
Dimensions (mm) | 1140*937*880 |
Weight (kg) | 635 |
Hydraulic Motor Model | 2-350-170 |
Hydraulic Motor Pressure (Mpa) | 21 |
Maximum Motor Flow (L/min) | 180 |
Check this video to get more information regarding our DXBH-600 piston mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
