Pilot Bit With Sonde Housing

Pilot Bit With Sonde Housing

Pilot bit is an essential part for all horizontal directional drilling works.
  • Item :

    Sonde housing with drill bit
  • Shipping Port :

    Shanghai Port, China
  • Warranty :

    12 Months
  • Lead Time :

    15-30 Working Days
Directional drilling pilot is a frequently used power-driven drilling pilot in well drilling , long-term and high speed drilling of the horizontal boring, sandstone drilling etc .

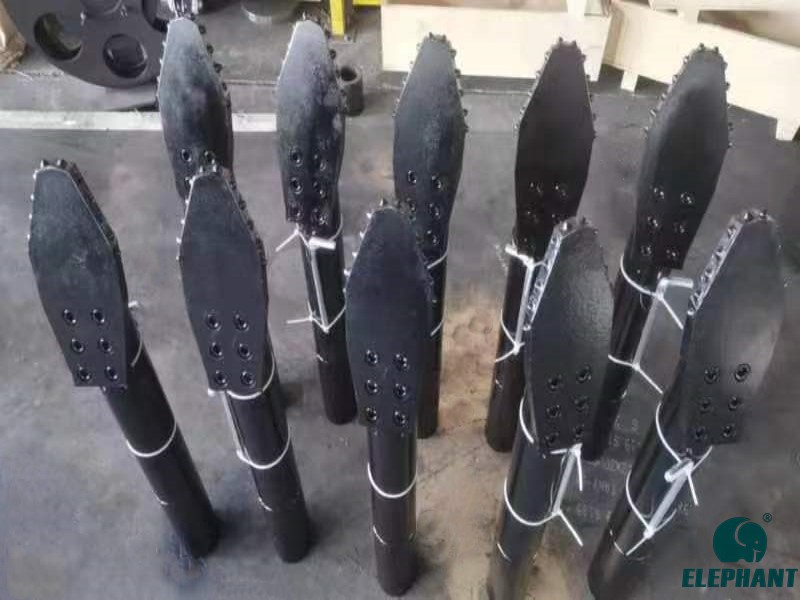

Plate-type Guide Drill Bits:
The drilling pilot is composed of drilling pilot plate and drilling tools. The guide plate is designed with alloy steel in its front part, with various steering blades optional. It can be selected according to different geology to improve construction efficiency.

Type : Direct connection & Octagonal connection.

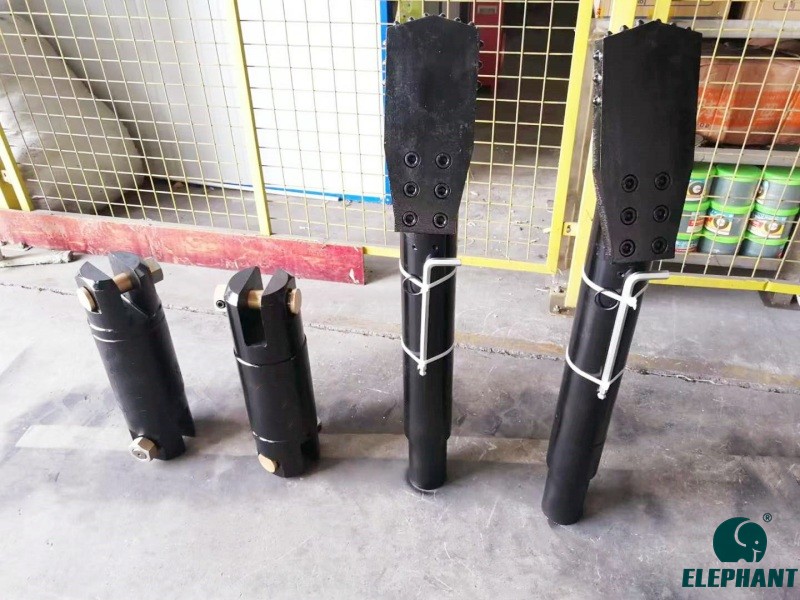

Two optional types of pilot with sonde housing : side-load and back-load type.
Features of side-load drilling pilot : Easy dismantle time and effort saving .
Features of back-load drilling pilot : Waterproof greater torque, compression resistance, less likely for bending, but time consuming.

Eagle Claw Type Drill Bits:
Eagle claw bit is designed for medium hard soil conditions designed with interchangeable cutter. The edge of the drill bit is designed with wearable strip, greatly improving life time of the drill bit.


Technical Parameters and Specifications:

Specification of the Drill Pipe

(mm)

Length of the Sonde Housing

(mm)

Load of the Sonde Housing  Connection Type
60 380 Back-load / Side-load

Direct Connection /

Octagonal Connection

73 380 Back-load / Side-load

Direct Connection /

Octagonal Connection

76 380 Back-load / Side-load

Direct Connection /

Octagonal Connection

83 380 Back-load / Side-load

Direct Connection /

Octagonal Connection

89 480 Back-load / Side-load Direct Connection
102 480 Back-load / Side-load Direct Connection
114 480 Back-load / Side-load Direct Connection
127 480 Back-load / Side-load Direct Connection
